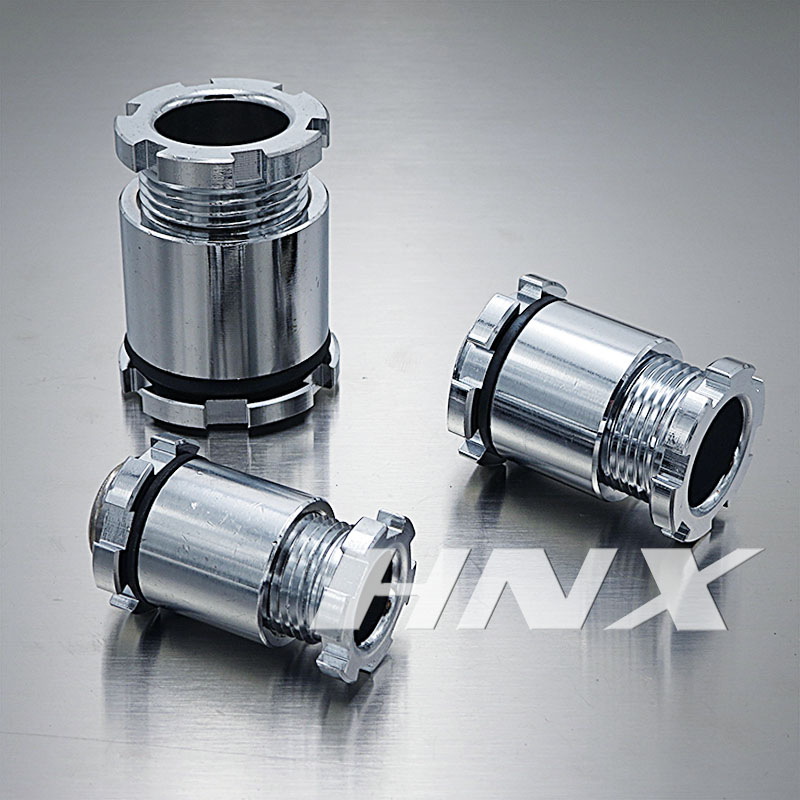

材质：黄铜镀铬
接头标准：日式
螺纹: PF
产品认证： 欧洲CE认证, 欧洲REACH 认证
应用范围：仪表，船舶，机械，电气，交通，医药，油田，电缆固定用
备注：可接受特殊规格定做业务，欢迎来电来函垂询.
| JIS 日式船用填料函 |
| 产品编号 |
规格 |
螺纹规格 |
夹紧件类型 |
适用电缆(mm) |
螺纹长度 (mm) |
机板口径(mm) |
| HX-JM3/8A |
JIS-10 |
3/8" |
A |
6-7 |
11 |
18 |
| HX-JM3/8B |
B |
7-8 |
| HX-JM1/2A |
JIS-15 |
1/2" |
A |
8-9 |
11 |
22 |
| HX-JM1/2B |
B |
9-10 |
| HX-JM1/2C |
C |
9-11 |
| HX-JM3/4A |
JIS-20 |
3/4" |
A |
11-12 |
11 |
27 |
| HX-JM3/4B |
B |
12-13 |
| HX-JM3/4C |
C |
12-15 |
| HX-JM1A |
JIS-25 |
1" |
A |
15-16 |
11 |
34 |
| HX-JM1B |
B |
16-18 |
| HX-JM1C |
C |
16-20 |
| HX-JM1-1/4A |
JIS-30 |
1-1/4" |
A |
20-22 |
12 |
43 |
| HX-JM1-1/4B |
B |
22-24 |
| HX-JM1-1/4C |
C |
22-26 |
| HX-JM1-1/2Aa |
JIS-35 |
1-1/2" |
A |
26-28 |
12 |
49 |
| HX-JM1-1/2Ba |
B |
28-30 |
| HX-JM1-1/2Ca |
C |
26-30 |
| HX-JM1-1/2Ab |
JIS-40 |
A |
30-32 |
| HX-JM1-1/2Bb |
B |
32-34 |
| HX-JM1-1/2Cb |
C |
30-34 |
| HX-JM2Aa |
JIS-45 |
2" |
A |
34-36 |
12 |
61 |
| HX-JM2Ba |
B |
36-38 |
| HX-JM2Ca |
C |
36-40 |
| HX-JM2Ab |
JIS-50 |
A |
40-42 |
| HX-JM2Bb |
B |
42-44 |
| HX-JM2Cb |
C |
40-44 |
| HX-JM2-1/2Aa |
JIS-55 |
2-1/2" |
A |
44-46 |
12 |
76 |
| HX-JM2-1/2Ba |
B |
46-48 |
| HX-JM2-1/2Ca |
C |
46-50 |
| HX-JM2-1/2Ab |
JIS-60 |
A |
50-52 |
| HX-JM2-1/2Bb |
B |
52-54 |
| HX-JM2-1/2Cb |
C |
52-56 |
| HX-JM3Aa |
JIS-65 |
3" |
A |
56-58 |
14 |
89 |
| HX-JM3Ba |
B |
58-60 |
| HX-JM3Ab |
JIS-70 |
A |
60-62 |
| HX-JM3Bb |
B |
62-64 |
| HX-JM3Ac |
JIS-75 |
A |
64-66 |
| HX-JM3Bc |
B |
66-70 |
  |
