首页 » 产品中心 » 其他接头,附件 » 防电磁型螺母

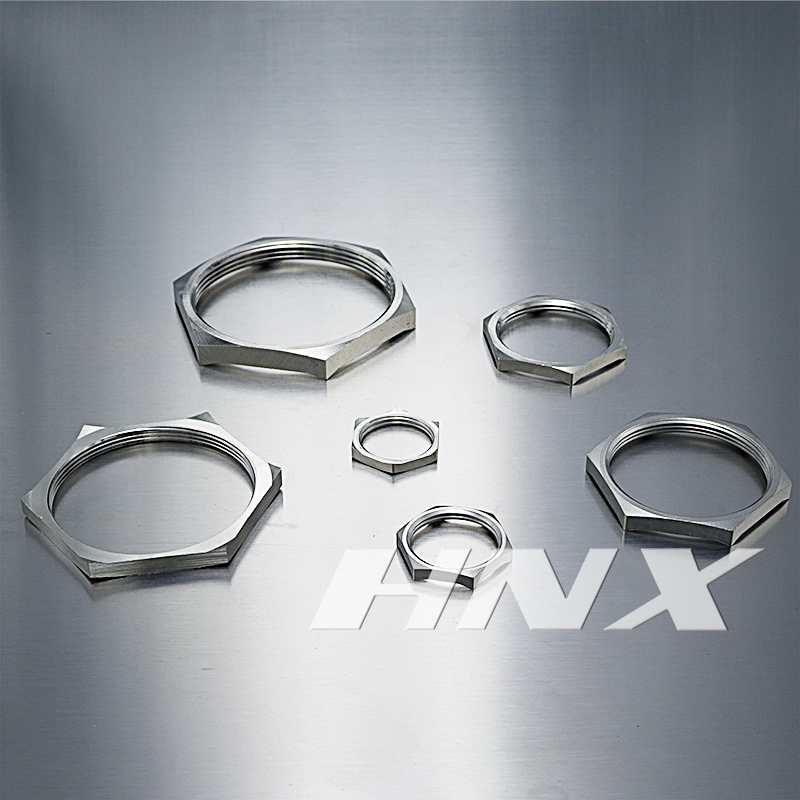

  • 防电磁型螺母
  • 产品编号螺纹规格厚度(mm) 扳手径(mm) 产品编号螺纹规格厚度(mm) 扳手径(mm) HX-LNM12/EMC M12 3 14 HX-LNPG7/EMC PG7 3 14 HX-LNM14/EMC M14 3 17 HX-LNPG9/EMC PG9 3 17 HX-LNM16/EMC M16 3 18 HX-LNPG11/EMC PG11 3 20 HX-LNM18/EMC M18 3 20 HX-LNPG13.5/EMC PG13.5 3 22 HX-LNM20/EMC M20 3...
详细
产品介绍:
产品编号 螺纹规格 厚度(mm) 扳手径(mm)   产品编号 螺纹规格 厚度(mm) 扳手径(mm)
HX-LNM12/EMC M12 3 14   HX-LNPG7/EMC PG7 3 14
HX-LNM14/EMC M14 3 17   HX-LNPG9/EMC PG9 3 17
HX-LNM16/EMC M16 3 18   HX-LNPG11/EMC PG11 3 20
HX-LNM18/EMC M18 3 20   HX-LNPG13.5/EMC PG13.5 3 22
HX-LNM20/EMC M20 3 22   HX-LNPG16/EMC PG16 3.2 24
HX-LNM22/EMC M22 3.2 24   HX-LNPG19/EMC PG19 3.5 27
HX-LNM24/EMC M24 3.5 27   HX-LNPG21/EMC PG21 4 30
HX-LNM25/EMC M25 3.5 27   HX-LNPG25/EMC PG25 4 35
HX-LNM27/EMC M27 4 30   HX-LNPG29/EMC PG29 4 40
HX-LNM28/EMC M28 4 30   HX-LNPG36/EMC PG36 5.5 50
HX-LNM30/EMC M30 4 32   HX-LNPG42/EMC PG42 6 57
HX-LNM32/EMC M32 4 35   HX-LNPG48/EMC PG48 6.5 64
HX-LNM33/EMC M33 4 35   HX-LNPG63/EMC PG63 8.5 77
HX-LNM36/EMC M36 4 40   HX-LN1/4AE G1/4 3 14
HX-LNM37/EMC M37 4 40   HX-LN3/8AE G3/8 3 18
HX-LNM40/EMC M40 4.5 45   HX-LN1/2AE G1/2 3 22
HX-LNM42/EMC M42 5 45   HX-LN3/4AE G3/4 4 30
HX-LNM47/EMC M47 5.5 50   HX-LN1AE G1 4 40
HX-LNM48/EMC M48 5.5 52   HX-LN1-1/4AE G1-1/4 5.5 50
HX-LNM50/EMC M50 5.5 55   HX-LN1-1/2AE G1-1/2 5.5 57
HX-LNM54/EMC M54 5.5 57   HX-LN2AE G2 6 64
HX-LNM56/EMC M56 5.5 59   HX-LN2-1/2AE G2-1/2 8.5 77
HX-LNM60/EMC M60 6 64   HX-LN3AE G3 9 94
HX-LNM63/EMC M63 6 68   HX-LN1/4BE NPT1/4 3 14
HX-LNM64/EMC M64 6 68   HX-LN3/8BE NPT3/8 3 18
HX-LNM72/EMC M72 8.5 77   HX-LN1/2BE NPT1/2 3 22
HX-LNM75/EMC M75 8.5 77   HX-LN3/4BE NPT3/4 4 30
HX-LNM80/EMC M80 9 88   HX-LN1BE NPT1 4 40
HX-LNM88/EMC M88 9 94   HX-LN1-1/4BE NPT1-1/4 5.5 50
HX-LNM100/EMC M100 9 110   HX-LN1-1/2BE NPT1-1/2 5.5 57
          HX-LN2BE NPT2 6 64
          HX-LN2-1/2BE NPT2-1/2 8.5 77
          HX-LN3BE NPT3 9 94
