螺牙规格:德制 PG

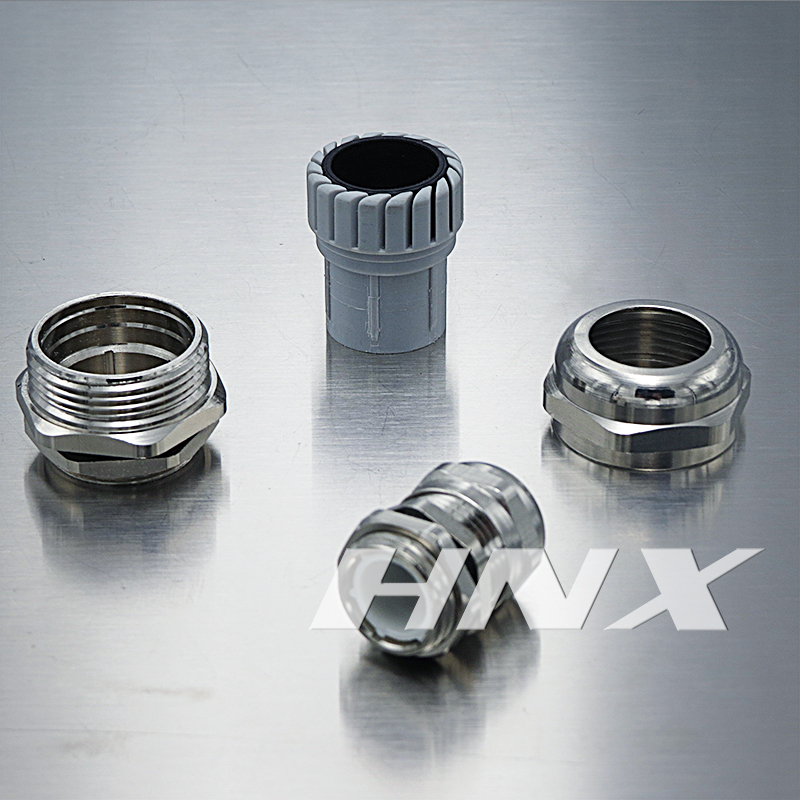

产品材质:接头主体部位采用黄铜镀镍制成,夹紧件采用尼龙塑料(PA)制成,密封件和O型密封圈均采用丁腈橡胶(NBR)制成。
工作温度:静态:-40℃到100℃,短时间达120℃。动态:-20℃到80℃,短时间达100℃
螺纹长度: 短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上,长螺纹适合接合厚型机板。螺纹加长型可定制。
产品特性:特殊夹紧爪与夹紧圈凹凸相扣之设计,配合迫紧头装配省时便利,夹紧电缆范围大、抗拉力特强、可防水、防尘、抗盐、耐酸碱、酒精、油脂及一般溶剂。
使用方法: 金属电缆防水接头是电缆的配套产品,接头可将电缆锁紧,另一端可接入设备箱体上,也可以根据选用螺纹接入进出口为内螺纹的电动设备上。
更多选择:可根据客户实际需要,特别定制。需要订购时欢迎来电咨询。
德制螺纹PG型系列 |
产品编号 |
螺纹规格 AG |
适用电缆(mm) |
螺纹外径(mm) |
机板口径 (mm) |
螺纹长度 GL(mm) |
扳手径 (mm) |
HX-NPPG7A/EX |
PG7 |
6.5-3 |
12.5 |
12.5-12.7 |
7 |
14 |
HX-NPPG7B/EX |
PG7 |
5-2 |
12.5 |
12.5-12.7 |
7 |
14 |
HX-NPPG9A/EX |
PG9 |
8-4 |
15.2 |
15.2-15.4 |
8 |
17 |
HX-NPPG9B/EX |
PG9 |
6-2 |
15.2 |
15.2-15.4 |
8 |
17 |
HX-NPPG11A/EX |
PG11 |
10-5 |
18.6 |
18.6-18.8 |
8 |
20/21 |
HX-NPPG11B/EX |
PG11 |
7-3 |
18.6 |
18.6-18.8 |
8 |
20/21 |
HX-NPPG13.5A/EX |
PG13.5 |
12-6 |
20.4 |
20.4-20.6 |
8 |
22 |
HX-NPPG13.5B/EX |
PG13.5 |
9-5 |
20.4 |
20.4-20.6 |
8 |
22 |
HX-NPPG16A/EX |
PG16 |
14-10 |
22.5 |
22.5-22.7 |
9 |
24 |
HX-NPPG16B/EX |
PG16 |
12-6 |
22.5 |
22.5-22.7 |
9 |
24 |
HX-NPPG21A/EX |
PG21 |
18-13 |
28.3 |
28.3-28.5 |
9 |
30 |
HX-NPPG21B/EX |
PG21 |
16-9 |
28.3 |
28.3-28.5 |
9 |
30 |
HX-NPPG25/EX |
PG25 |
22-15 |
32 |
32-32.2 |
10 |
35 |
HX-NPPG29A/EX |
PG29 |
25-18 |
37 |
37-37.2 |
11 |
40 |
HX-NPPG29B/EX |
PG29 |
20-13 |
37 |
37-37.2 |
11 |
40 |
HX-NPPG36A/EX |
PG36 |
33-25 |
47 |
47-47.2 |
12 |
50 |
HX-NPPG36B/EX |
PG36 |
26-20 |
47 |
47-47.2 |
12 |
50 |
HX-NPPG42A/EX |
PG42 |
38-32 |
54 |
54-54.2 |
13 |
57 |
HX-NPPG42B/EX |
PG42 |
31-25 |
54 |
54-54.2 |
13 |
57 |
HX-NPPG48A/EX |
PG48 |
44-37 |
59.3 |
59.3-59.5 |
14 |
64 |
HX-NPPG48B/EX |
PG48 |
35-29 |
59.3 |
59.3-59.5 |
14 |
64 |
|
